Camera on Crane with AI Video Analytics for People Detection Under Suspended Loads
Crane operations are essential in steel plants, warehouses, fabrication shops, and heavy manufacturing facilities. However, they also create one of the most serious workplace safety risks: workers entering the area below a suspended load. A single blind spot or delayed response can lead to severe accidents, equipment damage, and operational downtime.
DocketRun’s Camera on Crane with AI Video Analytics helps industries detect people under suspended loads in real time. The system uses a crane-mounted camera, AI Edge Box, operator display, and instant alerts to move crane safety from reactive monitoring to proactive prevention.
The Risk of People Under Suspended Loads
Suspended loads are unpredictable and dangerous. A worker standing below a lifted load is exposed to serious risk if there is load swing, chain slip, mechanical failure, operator delay, or communication gap between ground staff and the crane operator.
Crane operators often work from elevated cabins or remote operating stations where full visibility is limited. Large loads, structural columns, stacked materials, and low-light plant conditions can create blind spots. In such environments, real-time detection and instant alerts are critical.
DocketRun’s AI-Powered Camera on Crane System
DocketRun’s AI crane safety system continuously monitors the load handling area and detects human presence under suspended loads. When a worker enters the predefined danger zone, the system alerts the crane operator immediately through visual and audio warning mechanisms.
The solution is designed for industrial deployment and works on edge AI, which means analytics are processed locally without dependency on continuous internet connectivity.

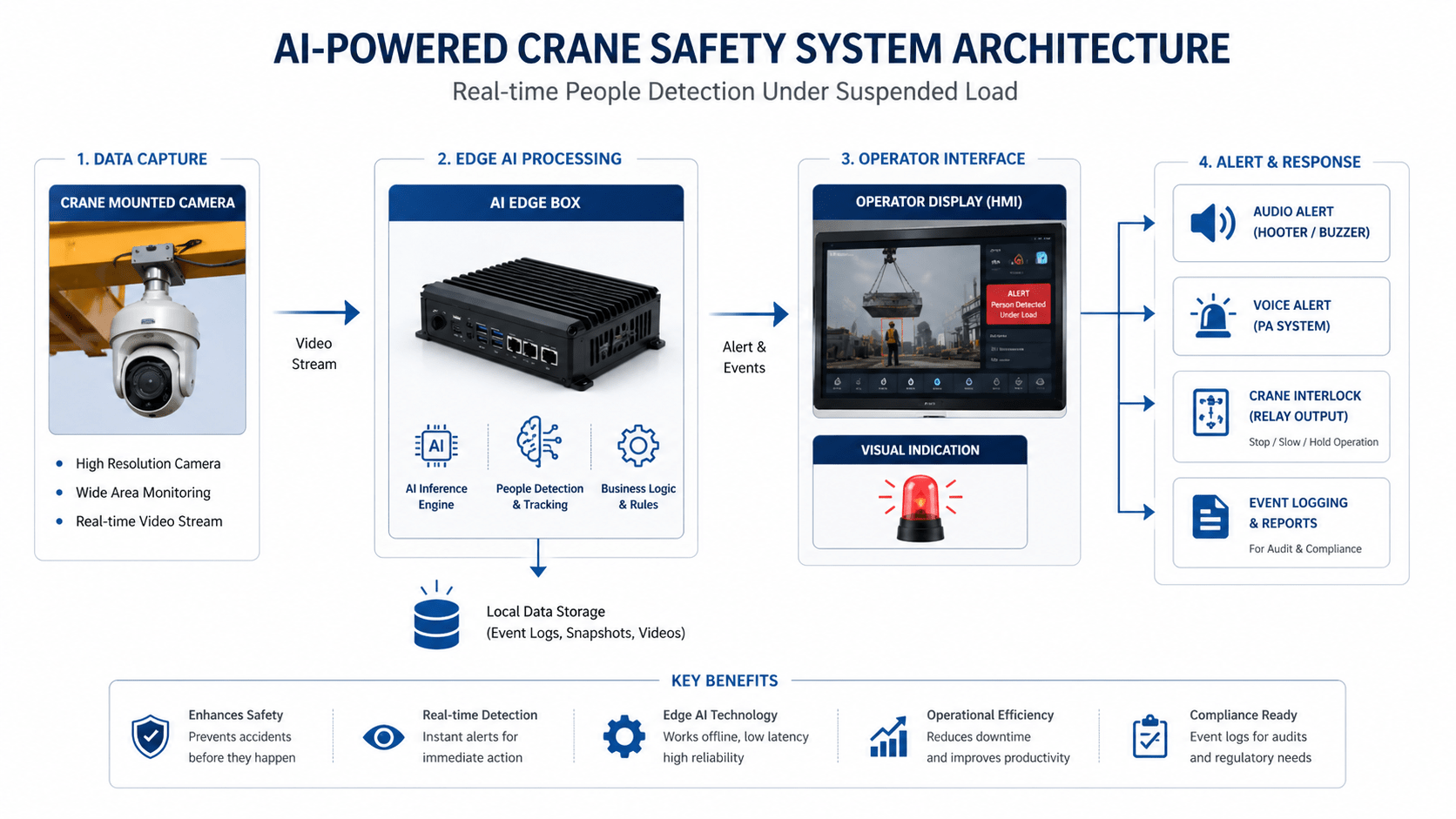

System Architecture
The system architecture is simple and scalable. A camera mounted on the crane captures live video of the suspended load area. The video stream is processed by an AI Edge Box installed on-premise. The AI model identifies people, tracks unsafe zone entry, and generates alerts when a safety violation is detected.
Alerts can be shown on the crane operator display and can also be integrated with hooters, buzzers, PA systems, voice announcements, event dashboards, and optional relay-based crane interlock systems.

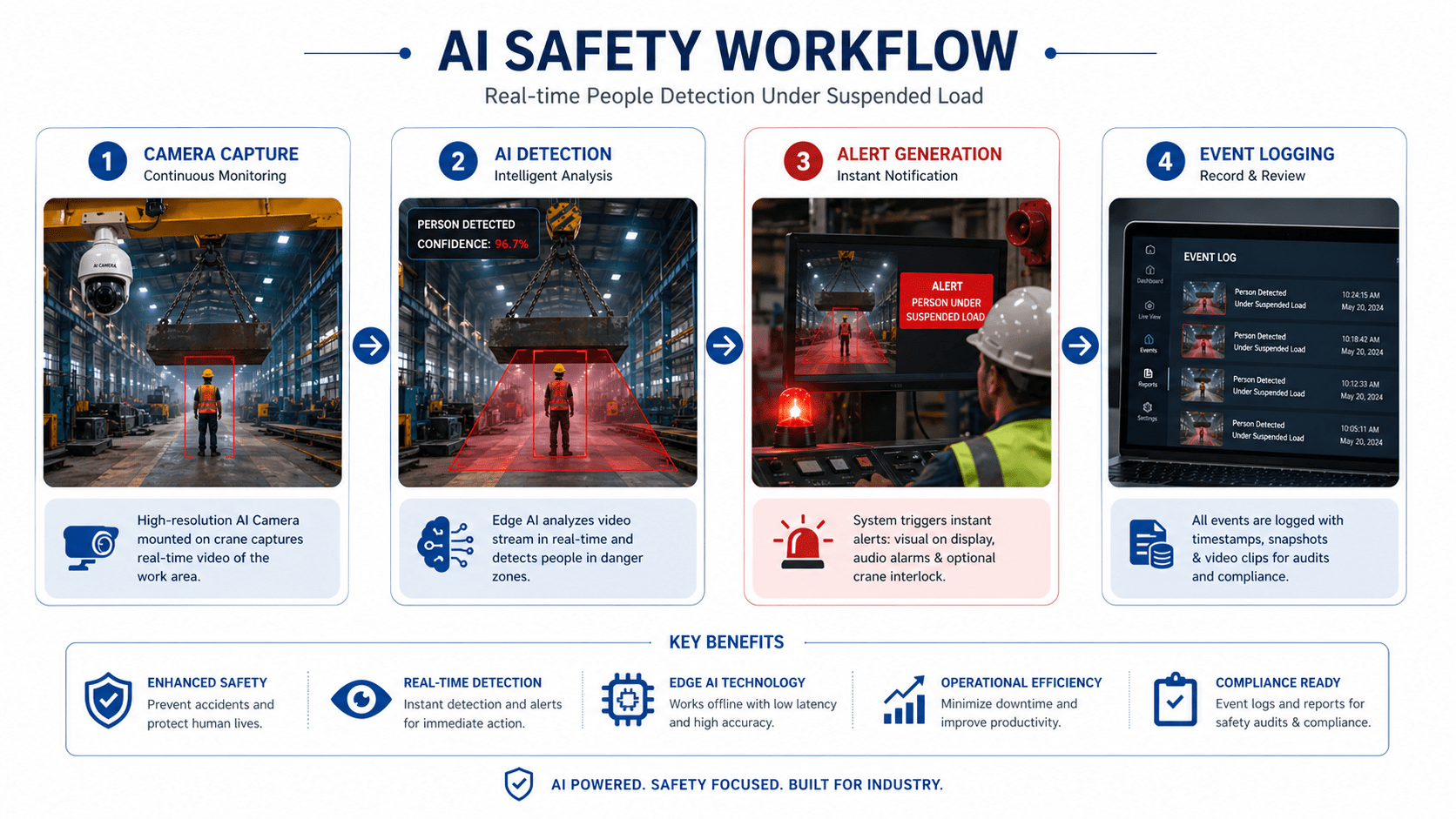

How the AI Safety Workflow Works
The AI workflow starts with continuous video capture from the crane-mounted camera. The AI Edge Box analyzes the live video feed in real time and checks whether a person has entered the danger zone below the suspended load.
When a violation is detected, the system generates instant alerts and logs the event with timestamp, snapshot, camera information, and violation details. These logs help safety teams review incidents, identify unsafe behavior, and improve compliance.
Key Capabilities of AI Crane Camera Analytics
- Real-time people detection under suspended loads
- Crane-mounted camera for live operational visibility
- AI Edge Box for low-latency local video analytics
- Operator display with instant visual alerts
- Audio alerts through hooter, buzzer, or PA system
- Optional relay output for crane interlock or movement restriction
- Event logging with snapshots for audit and compliance
Business Impact of AI-Powered Crane Safety
The biggest advantage of AI-powered crane monitoring is proactive safety intervention. Instead of reacting after an incident, the system identifies unsafe conditions as they happen. This improves operator awareness, reduces manual supervision dependency, and helps prevent near-miss situations from becoming serious accidents.
For plant safety teams, the system also provides digital evidence of violations. This supports internal safety audits, compliance reviews, safety training, root-cause analysis, and continuous improvement initiatives.
Why Choose DocketRun for Crane Safety Video Analytics?
DocketRun builds industrial AI video analytics solutions for real plant environments. The crane camera safety system can be deployed on-premise, integrated with existing CCTV or control systems, and configured with site-specific danger zones, alert rules, and reporting requirements.
The value is not only in detection. The real value is in immediate action through alerts, operator awareness, event logging, and optional interlock integration.
Frequently Asked Questions
What is a Camera on Crane AI Safety System?
It is an AI-powered video analytics system that uses a crane-mounted camera to detect people under suspended loads and alert operators in real time.
Does the system require internet connectivity?
No. The AI analytics can run locally on an AI Edge Box, making it suitable for on-premise industrial environments.
Can it trigger hooters or crane interlocks?
Yes. The system can be integrated with hooters, buzzers, PA systems, voice alerts, dashboards, and optional relay-based interlock systems.
Where can this system be used?
It can be used in steel plants, warehouses, fabrication shops, manufacturing plants, material handling zones, and heavy industrial facilities where cranes operate near workers.
Conclusion
Crane safety is not only about compliance. It is about protecting lives, reducing operational risk, and ensuring uninterrupted industrial operations. By combining camera visibility, edge AI analytics, operator display, and instant alerts, DocketRun’s Camera on Crane system provides a practical and scalable solution for one of the most critical workplace hazards.
AI Vision Today. Safe Operations Every Day.
Detect. Alert. Protect.
